Outdoor and Indoor emergency showers from FSP-Tech
Explosion-proof and industrial design
For cold and hot climates. Tank fed and plumbed-in options for both hot and cold environments.
Manufactured in accordance with ANSI / ISEA Z358.1-2014 standards
Professional level of safety with FSP-TECH showers & eye washes
Взрывозащищенное
и общепромышленное исполнение
Outdoor and Indoor emergency showers from FSP-Tech
Explosion-proof and industrial design
For cold and hot climates. Tank fed and plumbed-in options for both hot and cold environments.
Manufactured in accordance with ANSI / ISEA Z358.1-2014 standards
Professional level of safety with FSP-TECH showers & eye washes
Взрывозащищенное
и общепромышленное исполнение
FSP-Tech emergency showers & eye washes features
02
Water tank with a heated or water cooling system.
The frame, tank, doors
and pipelines are made
of stainless steel AISI 304, AISI 316 or galvanized steel
01
Stainless steel immersion heater or cooling system
04
03
Industrial Lighting with IP 65 protection
06
High-efficiency shower heads FSP-TECH with flow rate 76 l / min.
05
A large selection of additional components, including
in explosion-proof design
08
In cold climates is used space heater
07
Eyewash with high-efficiency shower heads FSP-TECH with flow rate 16 l / min.
1
2
5
3
7
4
8
6
DO YOU WANT TO KNOW MORE ABOUT FSP-TECH EMERGENCY SHOWERS AND EYE WASH?
Leave your contact details, we will contact you and answer all your questions.

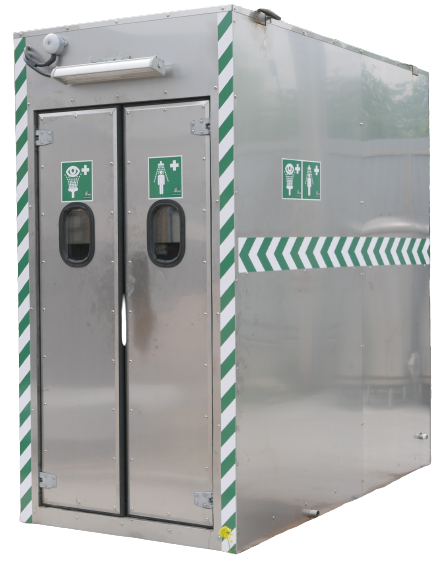

Model 1021201
Body shower with eye wash for installation outdoors, with water tank for water supply and an isolated cabin.
Product characteristics:
Material frame, side panels, piping and tank: stainless steel
Insulation: PIR
Tank capacity: from 350 l to 2000 l.
3 kW bath heater for tank
3 kW heater for cabin
Cabin with
– Catch basin
Water inlet: 1 ¼ ” female
Water outlet catch basin: 2” female
Ball valve: stainless steel/brass
High-performance shower head: plastic, chemical resistant or stainless steel
Activation: push rod inside the frame,
testing lever outside on the frame
Power supply: 230 V/50 Hz (other power supply on request)
Ex-protection: are suitable for operation in hazardous areas 1 & 2
Flushing times: at least 15 minutes Volume flow: 40 l/min standard / 76 l/min with option
Many available options on request
Material frame, side panels, piping and tank: stainless steel
Insulation: PIR
Tank capacity: from 350 l to 2000 l.
3 kW bath heater for tank
3 kW heater for cabin
Cabin with
– Catch basin
Water inlet: 1 ¼ ” female
Water outlet catch basin: 2” female
Ball valve: stainless steel/brass
High-performance shower head: plastic, chemical resistant or stainless steel
Activation: push rod inside the frame,
testing lever outside on the frame
Power supply: 230 V/50 Hz (other power supply on request)
Ex-protection: are suitable for operation in hazardous areas 1 & 2
Flushing times: at least 15 minutes Volume flow: 40 l/min standard / 76 l/min with option
Many available options on request

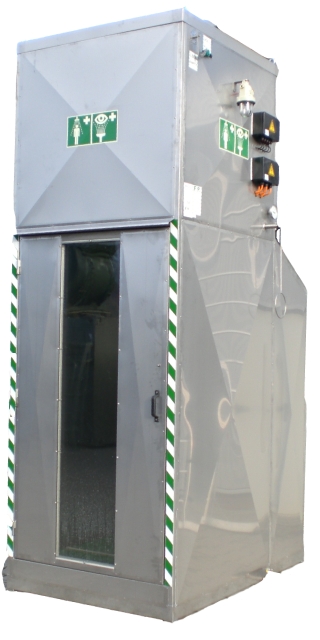

Model 1001002
Product characteristics:
Application area: Hot and cold climate
Material:
– frame: stainless steel
– valves: stainless steel/brass
– tank: stainless steel
– shower head: plastic or stainless steel.
Insulation: polyurethane foam boards, building material class B2
Tank capacity: from 350 l to 2000 l.
Frame with structural analyses according to current standard
Activation: push rod inside the frame
Test lever: optional right/left applicable
Frost protection and water heating: by optional bath heater
Power supply: 230 V/50 Hz (other power supply on request)
Ex-protection: are suitable for operation in hazardous areas 1 & 2
Flushing times: at least 15 minutes
Water inlet: 1 ¼“ female
Volume flow: 40 l/min Standard / 76 l/min with option
Many available options on request
Body shower with eye wash for installation both indoors and outdoors, with heating or cooling system of water in the tank.

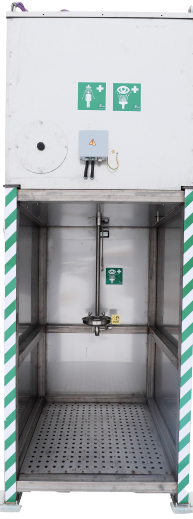

Model 1021205
Body shower with eye wash for installation both indoors and outdoors, with heating or cooling system. Water supply system under pressure of a water supply line. The shower consists of 2 rooms: a shower room and a service room.
Product characteristics:
Application area: Hot and cold climate
Material:
– frame: stainless steel
– valves: stainless steel/brass
– tank: stainless steel
– shower head: plastic or stainless steel
Insulation: PIR.
Boiler with hot water: from 350 l to 500 l.
Frame with structural analyses according to current standard
Power supply: 230 V/50 Hz (other power supply on request)
Ex-protection: are suitable for operation in hazardous areas 1 & 2
Flushing times: at least 15 minutes Volume Water inlet: 1 ¼“ female
Volume flow: 40 l/min Standard / 76 l/min with option
Many available options on request
Аварийный душ для тела
с фонтаном для глаз/лица
и бойлером для запаса воды до 500 литров. Предназначен
для использования
как внутри помещений,
так
и на открытом воздухе
с температурой до минус 52С
FSP TECH ENGINEERING COMPANY
Manufacturer of emergency showers and self-help cabins with water storage tanks. Technologies and projects are developed in partnership with the plant FSP-TECH GmbH (Germany) .
We develop technical solutions adapted to any climate
Compliance with the requirements of ANSI / ISEA Z358. 1-2014 DIN 12899, EN 15154-1, EN 15154-2
Manufacturing on our own production
FSP TECH ENGINEERING COMPANY
Manufacturer of emergency showers and self-help cabins with water storage tanks. Technologies and projects are developed in partnership with the plant FSP-TECH GmbH (Germany)
We develop technical solutions adapted to any climate
Compliance with the requirements of ANSI / ISEA Z358. 1-2014 DIN 12899, EN 15154-1, EN 15154-2
Manufacturing on our own production
FSP-TECH engineering
Russia
FSP-TECH engineering
China
FSP-TECH engineering
Kazakhstan
FSP-TECH engineering
Russia
Regions of presence
Manufacturer of emergency showers and self-help cabins with water storage tanks. Own technologies and many years of experience in development and production.
FSP-TECH engineering
China
FSP-TECH engineering
Kazakhstan
Completed projects

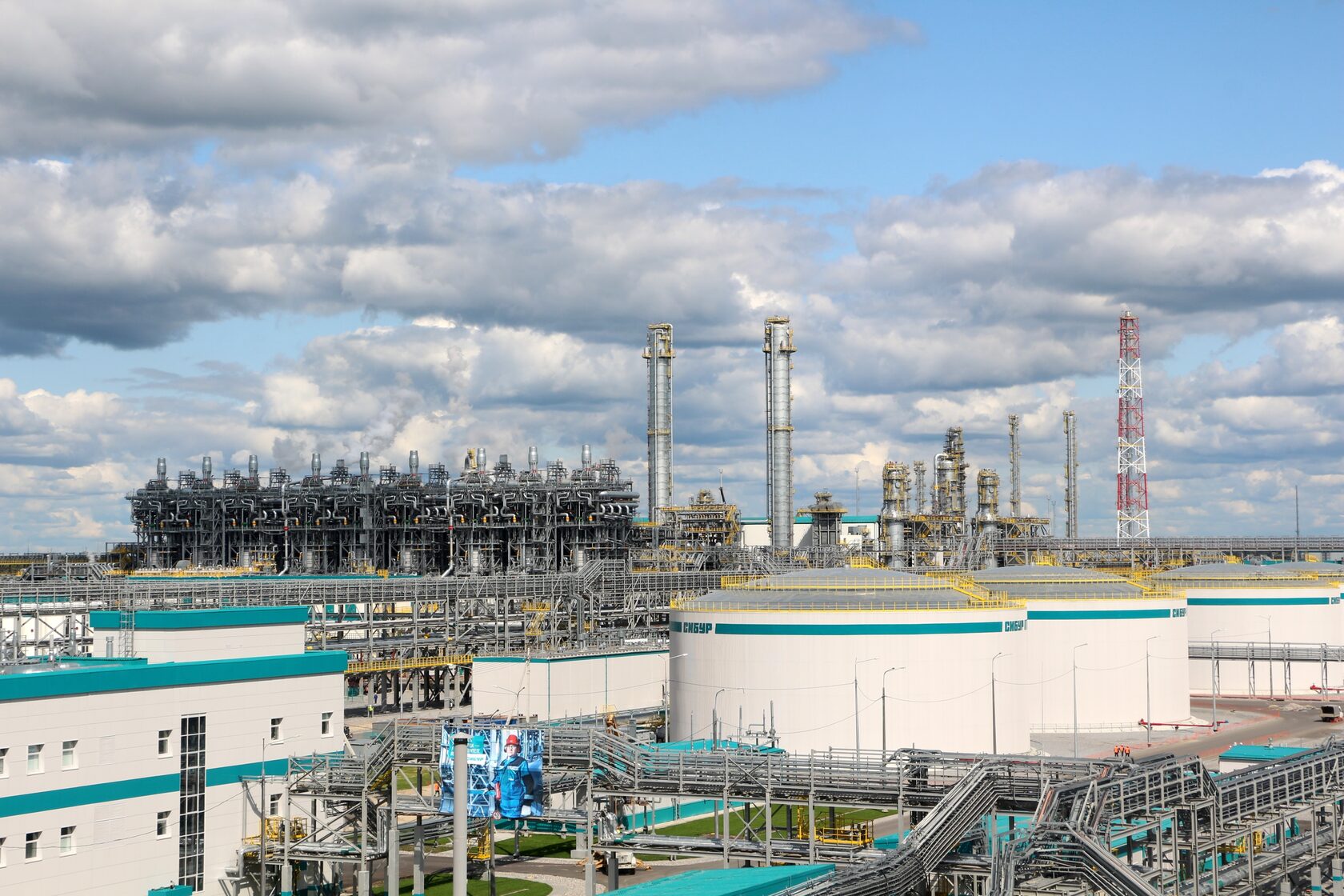

Production and delivery of 42 explosion-proof tank showers cabins for the ZAPSIBNEFTEKHIM 2 project in Tobolsk, Russia
Production and delivery
13x Special thermo shower and 25x freestanding frost-protected safety shower according Evonik standard for
Evonik Industries AG
Production and delivery
48x Freestanding frost-protected safety shower for Thyssenkrupp Industrial Solutions AG
Production and delivery
3x Isolated and heated tankshower 1200 litres enclosed cabin explosion-proof version for LUKOIL
Drilling platform Filanovskogo in the Caspian sea
The FSP-Tech equipment has already been selected
Email your enquiry and we`ll contact you with the best offer.
FSP-TECH performs a complex of works on the development of design documentation, assembly of equipment and delivery to Customer facilities. Many Industrial companies around the world include among our regular customers.
